Generally, one Bonita tenant could be running several processes. It is the responsibility of an administrator to regularly monitor the health status of Bonita BPM engine for any failures. This blog presents an approach for monitoring the Bonita engine without logging in to the portal.

To address this, we have created a separate process called ‘Health Monitoring’ which keeps listening to the Bonita engine for failed cases and sends out an email with appropriate information if it finds any failed tasks for running processes. We have created a scheduler that is running continuously in the Bonita engine to find failed cases. The process is fairly simple to understand and setup.

Bonita BPM Health Monitoring

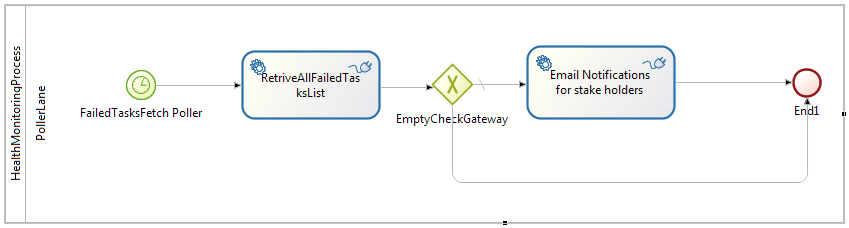

The process has four elements:

  • Start Timer Event
  • Retrieve all Failed Tasks List Task
  • Empty Check Gateway
  • Email Notifications for Stakeholders Task
Custom Page Integration with Bonita BPM Process Blog
1. Start Timer Event

The start timer is used to launch the process on a repeating schedule (cycle) at a fixed date and time or after a specific delay (duration). To set the schedule, select the start timer event, go to the Details Panel > General Tab > General Pane and click on the ‘Edit’ option.

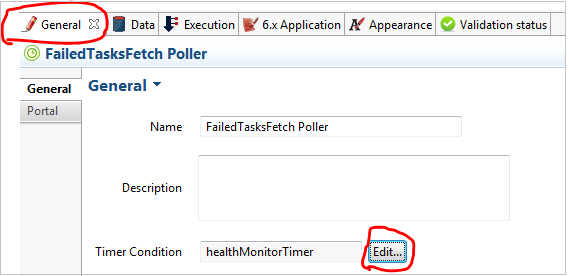

Start Timer Event - Bonita BPM Health Monitoring

Clicking on ‘Edit’ opens a new window, which allows us to specify the condition (refer illustration).

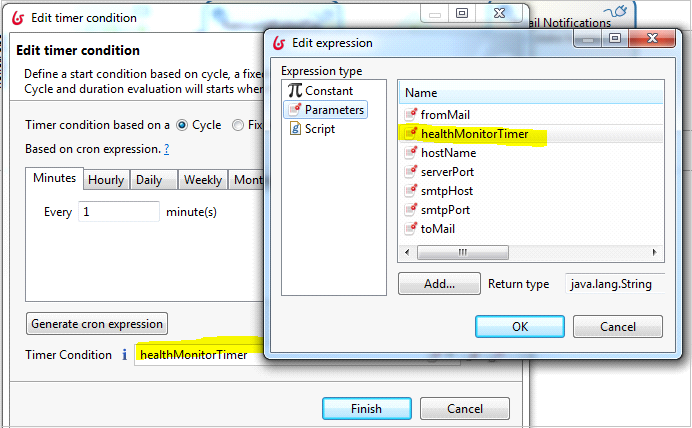

Edit Timer Condition

For this process, we have selected a cycle and set up a condition to run the process every weekday at 6 AM. The value for the parameter healthMonitorTimer shown in the above screen should be changed to 0 0 6? * MON, TUE, WED, THU, FRI *

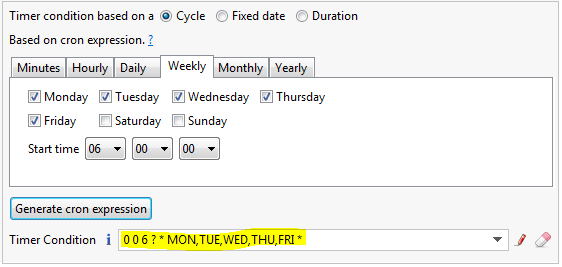

Timer Condition Based

This means the Bonita engine creates an instance (case) for the health monitoring process at 6 AM every weekday.

2. Retrieve all Failed Tasks List Task

Retrieving all failed tasks is the heart of this process. This task communicates with the Bonita engine and retrieves information about all failed tasks (if any). Here is a sample code, which provides a HashMap of all failed tasks.

Retrieve All Failed Tasks - Monitor BPM Health

Map<ProcessInstance, List<ActivityInstance>> failedProcessDetailsMap = new HashMap<ProcessInstance,
List<ActivityInstance>>();
SearchOptions searchOptions = new SearchOptionsBuilder(0, Integer.MAX_VALUE);
SearchResult searchResults = apiAccessor.getProcessAPI().searchFailedProcessInstances(searchOptions);
List processInstances = searchResults.result;
for (ProcessInstance processInstance : processInstances) {
List<ActivityInstance> activityList = apiAccessor.getProcessAPI().getActivities(processInstance.rootProcessInstanceId, 0,
Integer.MAX_VALUE);
failedProcessDetailsMap.put(processInstance, activityList);
}

3. Empty Check Gateway

The empty check gateway decides whether to send an email or not. The gateway directly routes the case to closure if it doesn’t find any failed cases. If it finds any, then the control will be forwarded to the subsequent step i.e. email notification to the stakeholders.

Empty Check Gateway

4. Email Notifications for Stakeholders Task

This is the final step and is responsible for sending actual emails. This task holds an email connector and primarily we have used parameters for all required fields such as To email, From email, SMTP Port, SMTP Host, etc., for setting dynamic values through Bonita Portal.

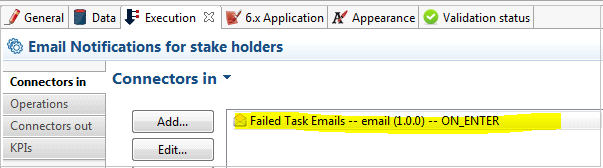

Email Notifications

Here is a screenshot of sample code from the actual message content.

Code

The email received appears as shown in the screenshot below.

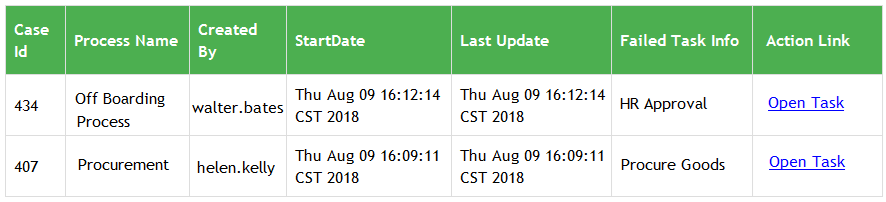

Received Emails - BPM Health Monitoring

In the above table, there is a column called ‘Action Link’, which holds the link to the task. If Open Task link is clicked in any of the rows, the corresponding tasks page will be opened. This enables administrators to route the error task directly to take instant action.
